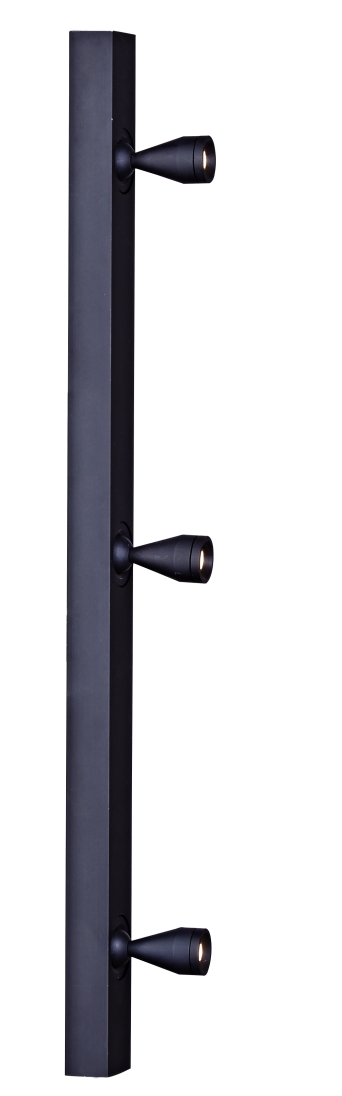

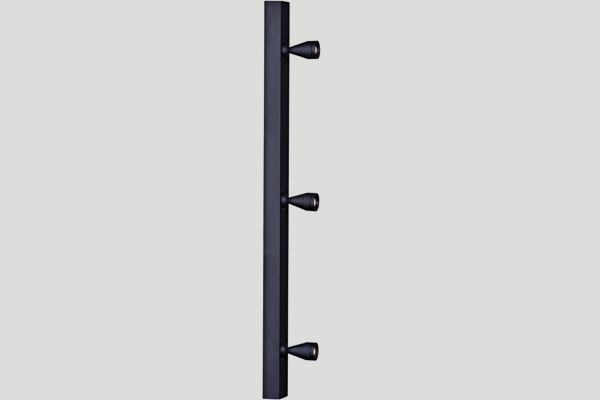

迷你条形展示灯

用于展陈及商业展示空间 , 如博物馆展示架 , 展示柜 , 展示台及橱窗等空间

●外形紧凑 , 投射头直径仅19毫米 , 无漏光结构设计

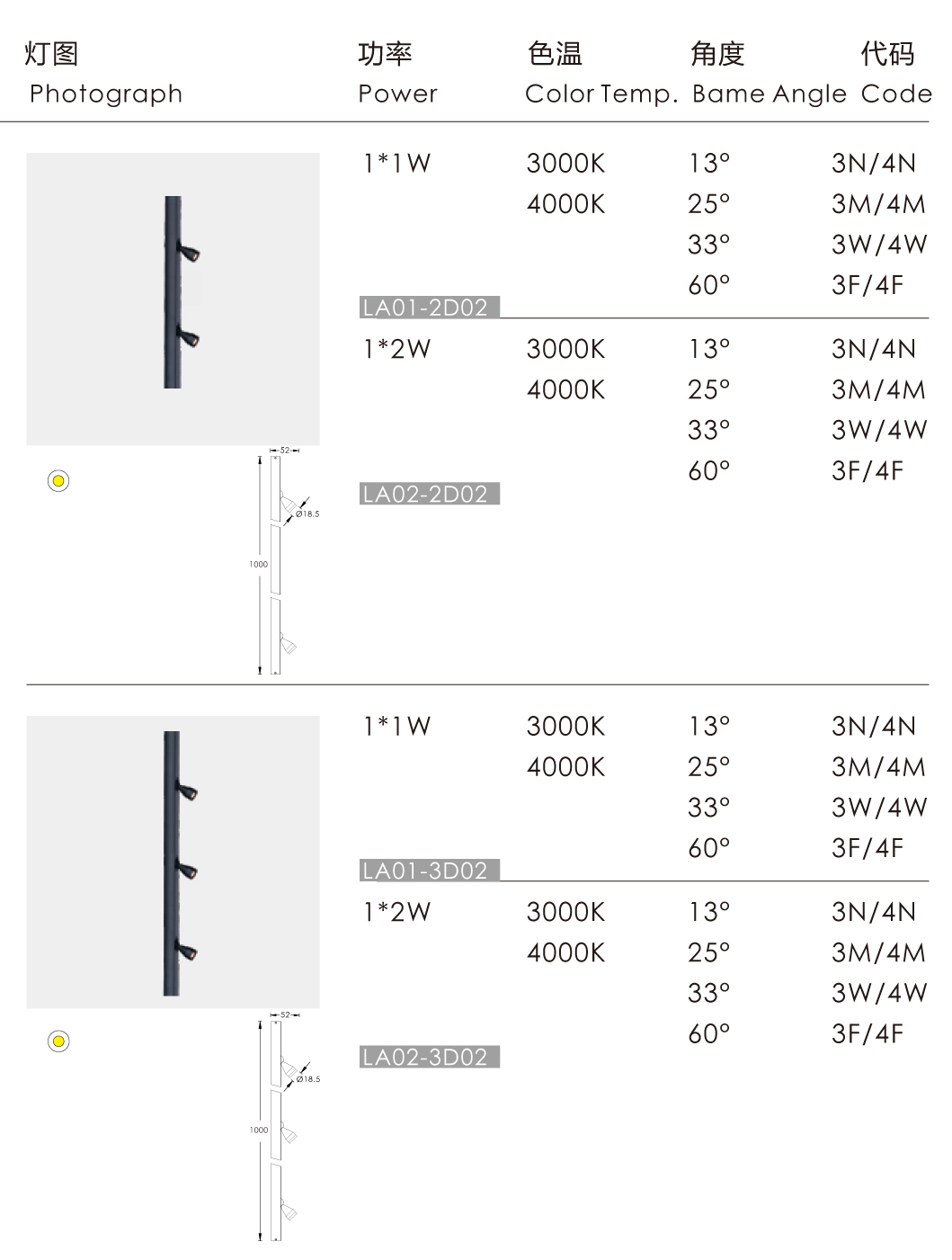

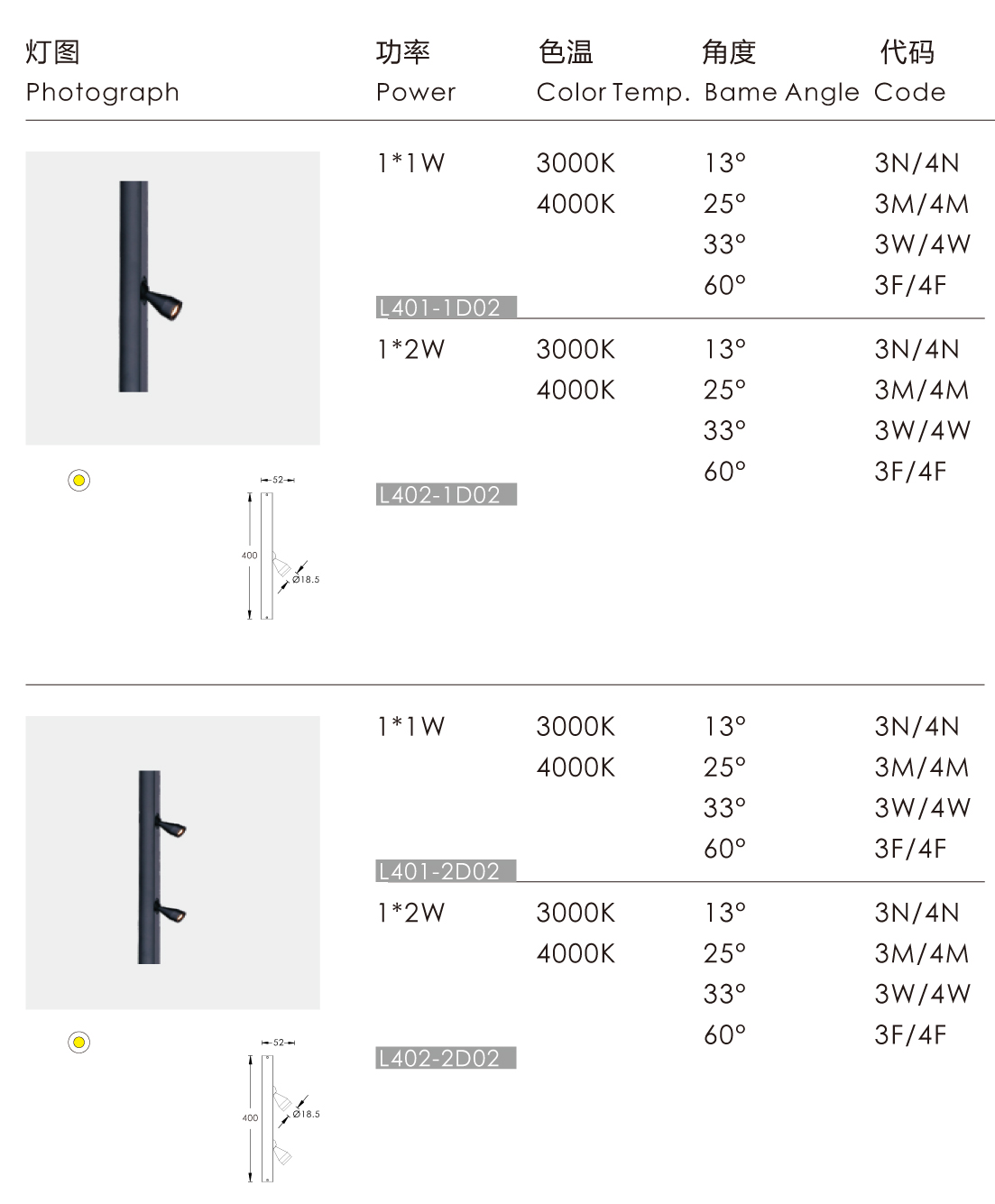

●灯具长度有0.4米 ,1米 , 2米三种规格 , 标准配置1-3只灯

●可根据实际场景需要 , 调配灯具数量 , 最多可配八只灯具/米

●高品质恒压驱动电器 , 具有高温 , 短路 , 过载保护

●170度全方位灵活转动 , 无盲区投射角度调节 , 快捷方便

●专业光学配光模拟设计 , 光学级PMMA透镜 , 柔和舒适

●多灯组合安装可运用回路调光系统控制

MINI  Display Light

Designed for commercial applications like display case,exhibition

booth,art gallery,museum etc.

●Very compact profile with diameter 19mm only, no-light-leaking design can eliminate unpleasant interfering lighting

●1-3 projectors are available with the length from 0.4-1M

●Adjusting the lights number freely up to 8pcs per meteraccording to the request

●High quality LED constant voltage electronic DR-iver with high temperature,short-circuit and over load protection

●170 degree rotation in all direction,quick and free adjustment of the light projection

●Designed by experienced optical experts,quality PMMA lens；

●Circuit dimmable system is used to control 2-15 lights together freely

产品描述

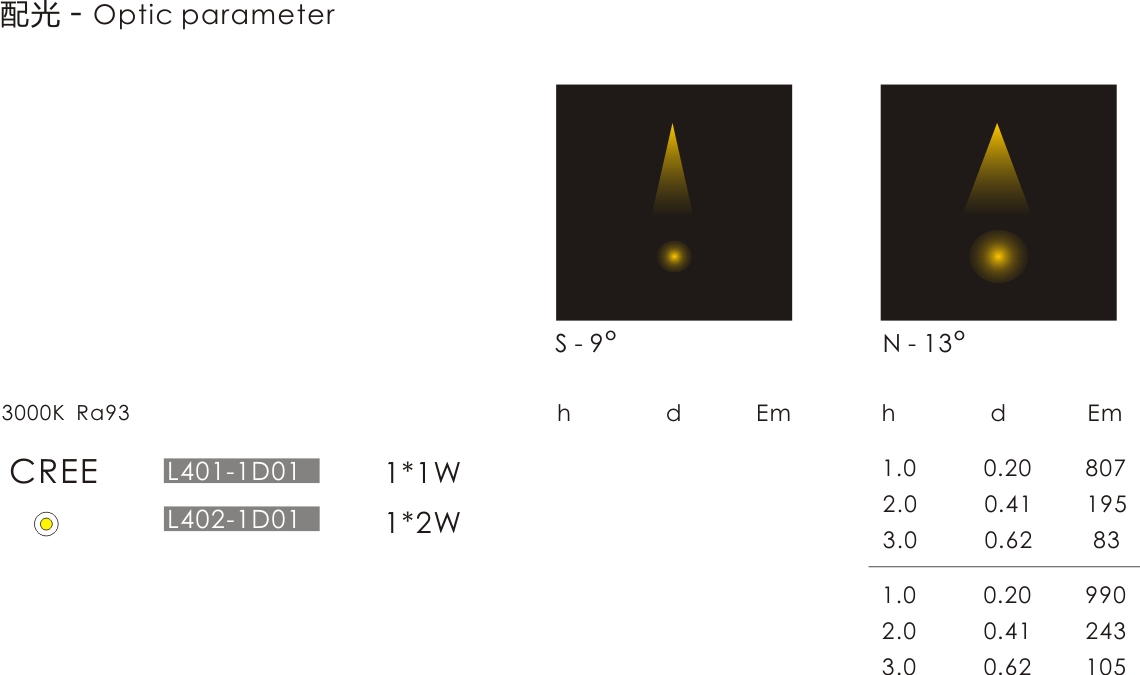

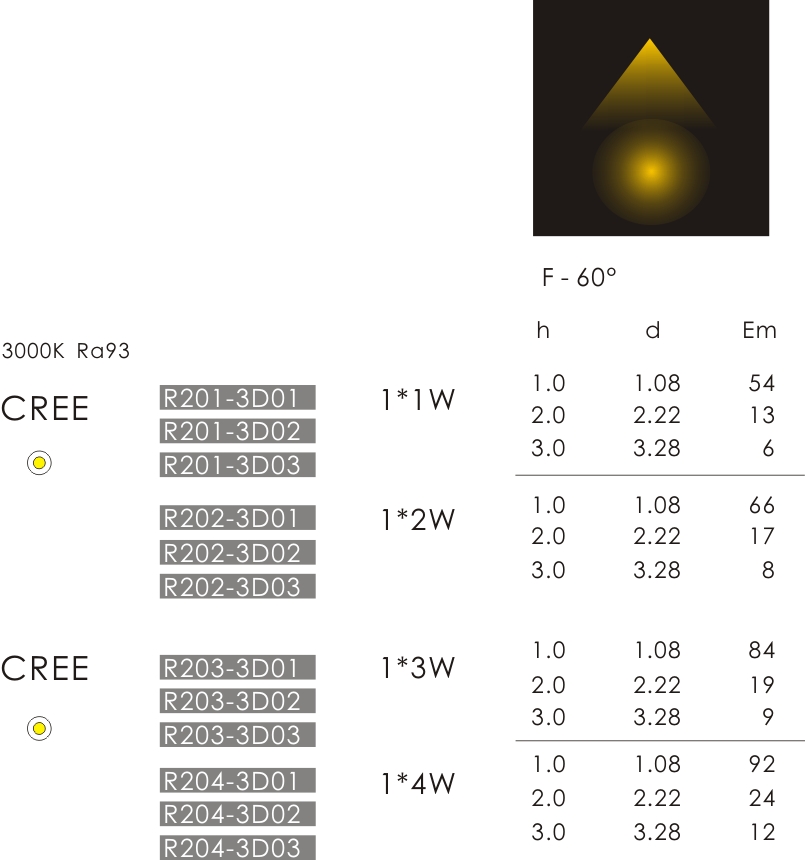

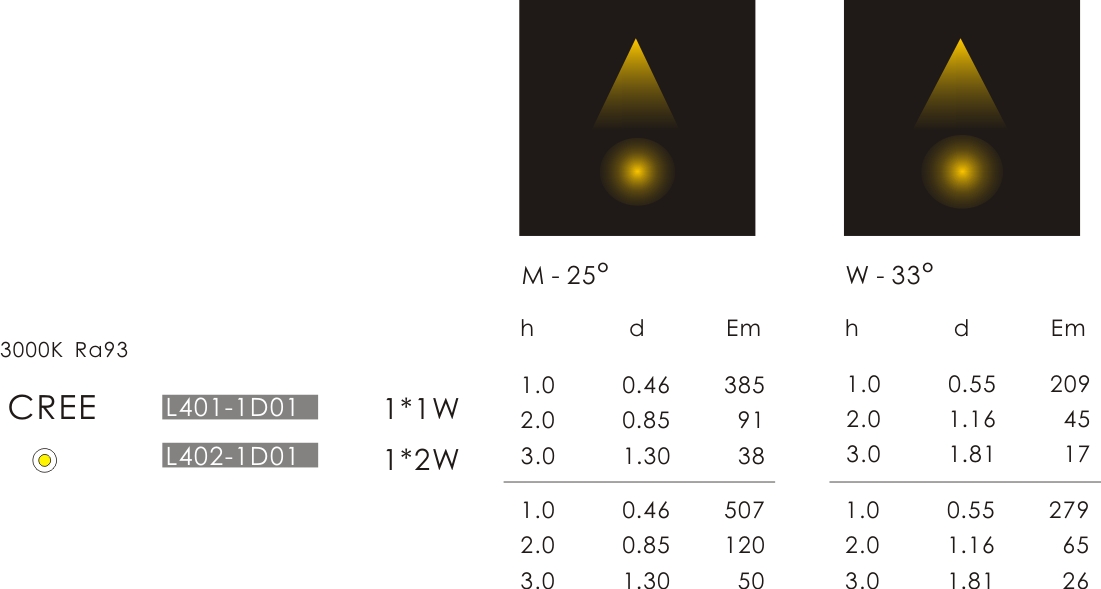

●光束角 :  N-13°, M-25°, W-33°, F-60°

●光源 : CREE    显色性 : 93；寿命期间光通量维持率：70%

●驱动 : 220-240V AC 50/60Hz 输入，高品质恒压驱动

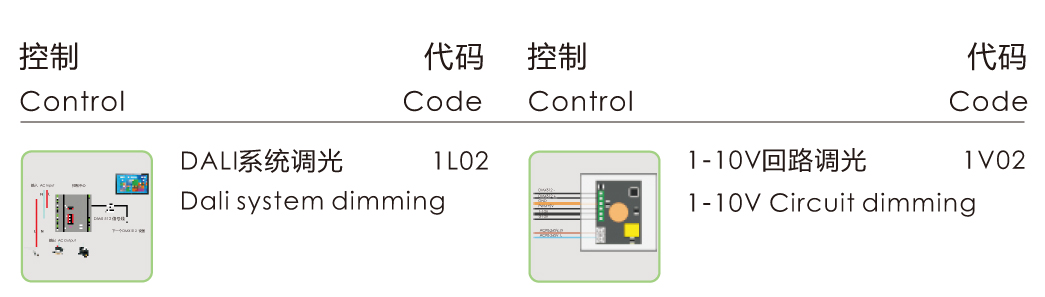

●控制：不调光，多灯组合可做回路调光

●主材：铝合金高导热灯体，高反射率光学组件

●170° 全方位灵活转动

●颜色 : 黑色  白色  银灰色

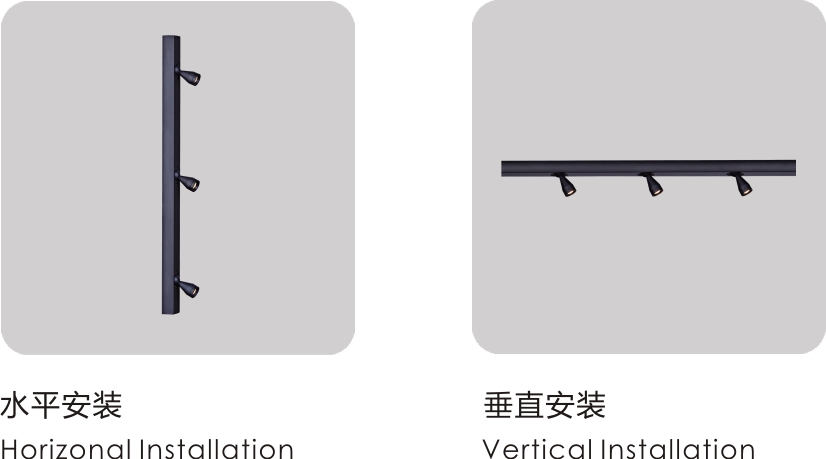

●安装 : 表面固定安装

Description

●Beam angle :  N-13°, M-25°, W-33°, F-60°

●LED Qty : CREE   CRI>93,Luminous maintenance index during rated life is no less than 70%

●DR-iver : 220-240V AC, 50/60Hz；constant voltage LED DR-iver

●Non-dimmable,Circuit dimmable system is used to control 2-15 lights together freely

●Aluminum construction with outstanding thermal conductivity，High performance optical devices

●170 degree rotation horizon freely

●Finish: White , Black and Silver Grey

●Surface-mounting for option
